We have been engaged in design and manufacture of double disc grinding machines for grinding internal combustion engine connecting rods and other mechanical parts with double end faces grinding requirement for many years

MORE PRODUCTS

We have been engaged in design and manufacture of double disc grinding machines for grinding internal combustion engine connecting rods and other mechanical parts with double end faces grinding requirement for many years

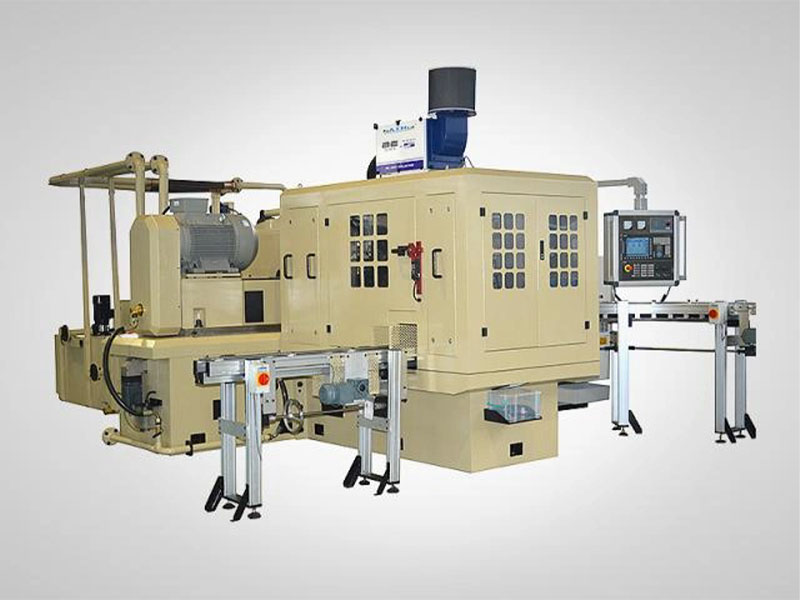

Automatic Double Disc Grinding Machine

The full-automatic double disc grinding machine is mainly used for the production line of engine connecting rods to meet the requirements of diesel engine connecting rod processing technology and gasoline engine connecting rod processing technology. Each part of the full-automatic double disc grinding machine is managed independently, including automatic arithmetic operation and analysis, automatic loading and unloading, automatic grinding, automatic compensation, automatic trimming, automatic cleaning, automatic dredging, automatic lubrication, etc. MARPOSS measurement system automatically realizes 100% full inspection, automatic isolation of waste products, automatic entry of finished products into the next process, an intelligent process without manual intervention. And can serve for construction of an automatic production line of that connecting rod. After replacing the loading and unloading fixture, it is also suitable for processing other workpieces with high precision requirements such as bearings and gears, as well as production lines with high automation requirements.

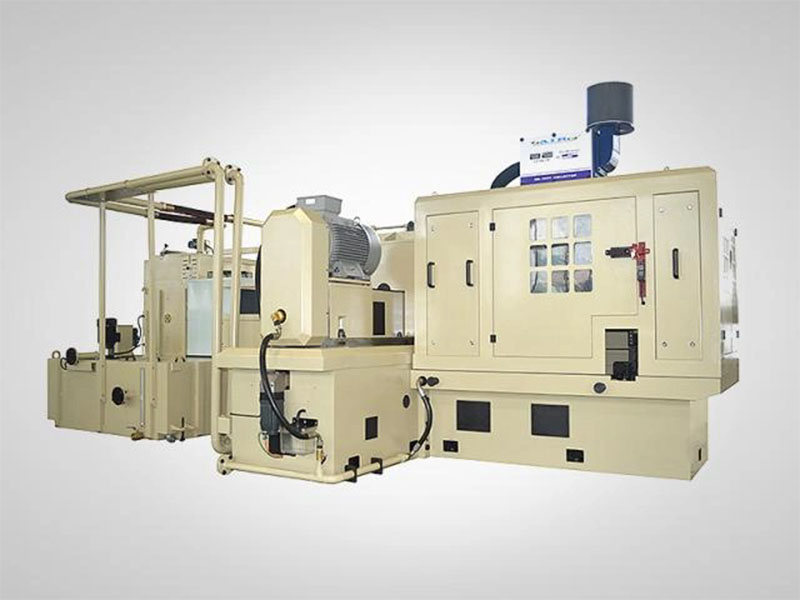

CNC Double Disc Grinding Machine

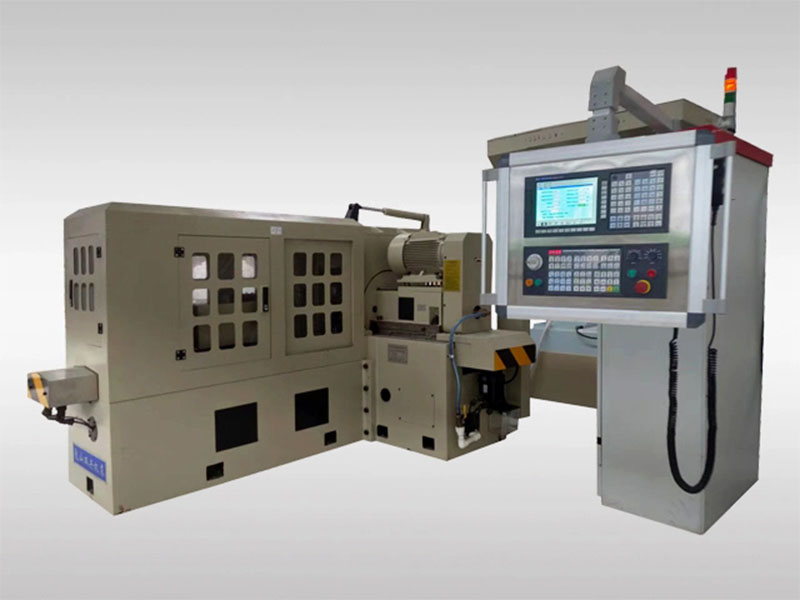

The CNC double disc grinding machine can be used for high-precision grinding of two end surfaces of large-size parts such as a connecting rod of a diesel engine, a carbon ceramic plate, a carbon ceramic brake disc, a cylinder cover, a valve block, a square cylinder cover and the like, adopts reciprocating motion and plunge grinding, and mainly comprises a four-axis numerical control system; anti collision system for grinding wheels and clamps; automatic lubrication system; hydraulic and pneumatic systems, etc. Four axis CNC system, mechanical, pneumatic, PLC, electrical control, alarm and fault diagnosis systems work together. MARPOSS measurement system can be installed to automatically achieve 100% full inspection, and the CNC double disc grinding machine has the functions of self-fault diagnosis and historical record query function.

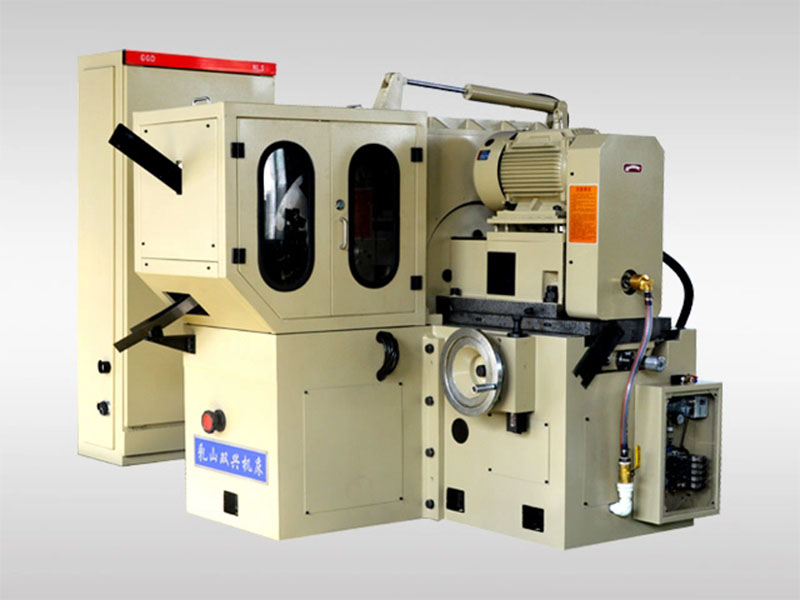

Double Disc Grinding Machine

By switching different fixtures, this double disc grinding machine can grind motorcycle connecting rods, mobile phone edge strips, mobile phone frames, bearings, pistons, piston pins, wool scissors blades, crankshaft bush covers, cams, sliders and many other products. The double disc grinding machine is a high-efficiency special double disc grinding machine independently developed by our company on the basis of fully understanding the advantages and disadvantages of domestic and foreign double disc grinding machines, digesting and absorbing advanced design concepts, in order to meet the process requirements of flatness and parallelism of both ends of the workpiece, and on the basis of decades of experience in double disc grinding machine manufacturing, with high precision, stable performance and simple and fast switching convenience for varieties of workpiece. Is suitable for the requirement of high-efficiency mass production by the double disc grinding machine.

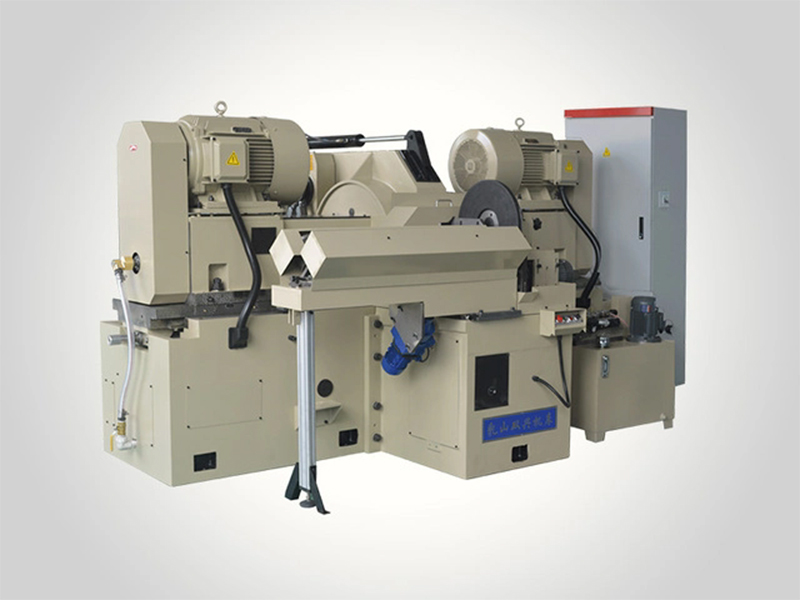

Through Type Double Disc Grinding Machine

The through-type double disc grinding machine can be used for powerful grinding, is an ideal double disc grinding machine for grinding multi-specification products by a single machine, and is mainly used for grinding round or square and rectangular large-specification parts such as bearings, bicycle disc brakes, gear rings, notebook aluminum plates, compressor valve plates, robot gears, blades, air compressor valve plates, aluminum plates and the like. The outstanding characteristics of the through-type double disc grinding machine are strong rigidity, good stability, high precision, complete functions, low failure rate and easy maintenance. The advantage of the horizontal shaft through-type double disc grinding machine is that through the hydraulic pretightening force, it scientifically achieves the requirement of pretightening force that must be retained by the grinding head for the through-type grinding machine, while effectively eliminating the axial clearance of the ball screw, achieving fast forward and backward movement of the left and right grinding heads of the horizontal axis double disc grinding machine.

This machine has a variety of options to meet the needs of different customers.

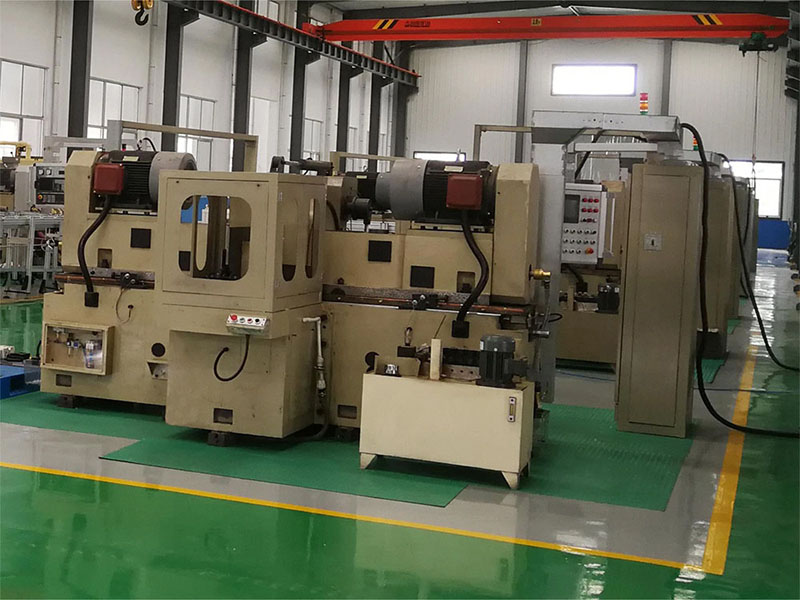

Connecting Rod Double Disc Grinding Machine

The special double disc grinding machine for connecting rod is a through-type high-efficiency special double disc grinding machine for connecting rod developed independently by our company by digesting and absorbing advanced design concepts at home and abroad, with a number of independent intellectual property rights. The connecting rod double disc grinding machine is a key project of “four plans” for small and medium-sized enterprises and “promotion of structural adjustment”in Shandong Province, and has won the provincial science and technology innovation award. The experts participating in the appraisal agreed unanimously that the connecting rod double disc grinding machine is novel and unique in design, fills in the gaps in China, leads the overall technology in China, has high precision, stable performance, and is easy and fast to switch varieties. It meets the requirements of connecting rod processing technology, and is equipped with special conveying channels for connecting rods for loading and unloading, which is suitable for high-efficiency mass production of connecting rod through automatic lines.

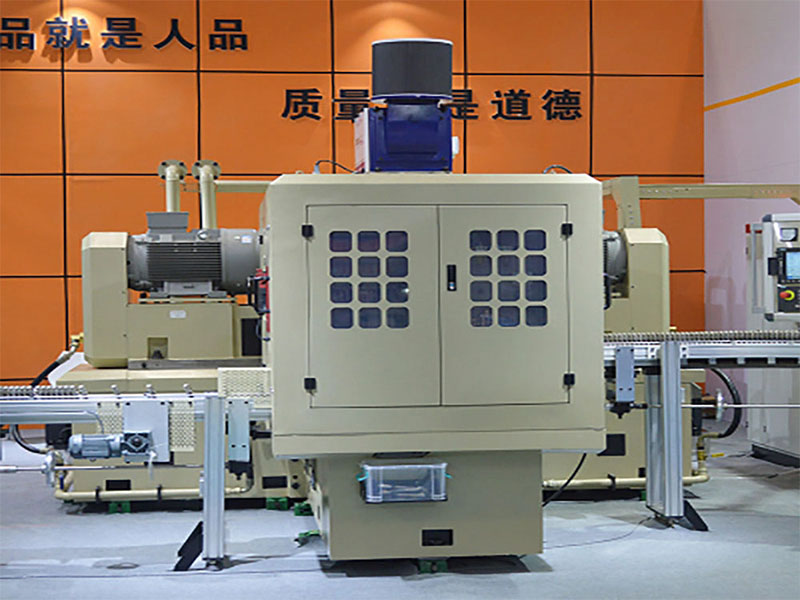

CNC Automatic Double Disc Grinding Machine

The CNC double disc grinding machine, belonging to an intelligent double disc grinding machine, can grind connecting rod with unequal thickness between two ends. It provides a reliable solution of processing technology for grinding the connecting rod with unequal thickness of the large end and the small end. It is combined with a special connecting rod conveyor belt for the connecting rod transporting. It is automatic for workpiece loading and unloading. Marposs measurement system automatically realizes 100% full inspection. Waste products are automatically isolated, and the finished products automatically enter the next process, which can be used for construction of automatic production lines. Because of its outstanding stability and high rigidity, this CNC automatic double disc grinding machine can also be used for grinding large size connecting rod such as diesel engine and other larger specifications. It is also suitable for processing other parts of different shapes and different materials after replacing the fixture.

WHY CHOOSE US
WHY CHOOSE US
Rushan Shuangxing Machine Tool Manufacturing Co., Ltd. is located in the beautiful coastal city of Rushan, Shandong, China. It is a high-tech enterprise with a group of engineering and technical talents who have been engaged in the design and manufacturing of double disc grinding machines for a long time. It has mastered the development trend of advanced grinding machine manufacturing technology both domestically and internationally, and has formed a highly influential technical team both domestically and internationally. It has multiple independent intellectual property rights and has won multiple scientific and technological innovation awards.

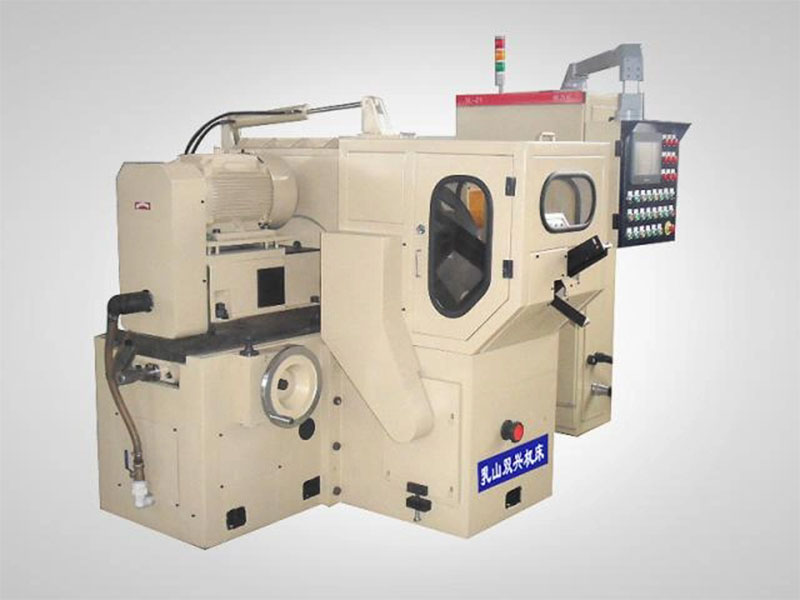

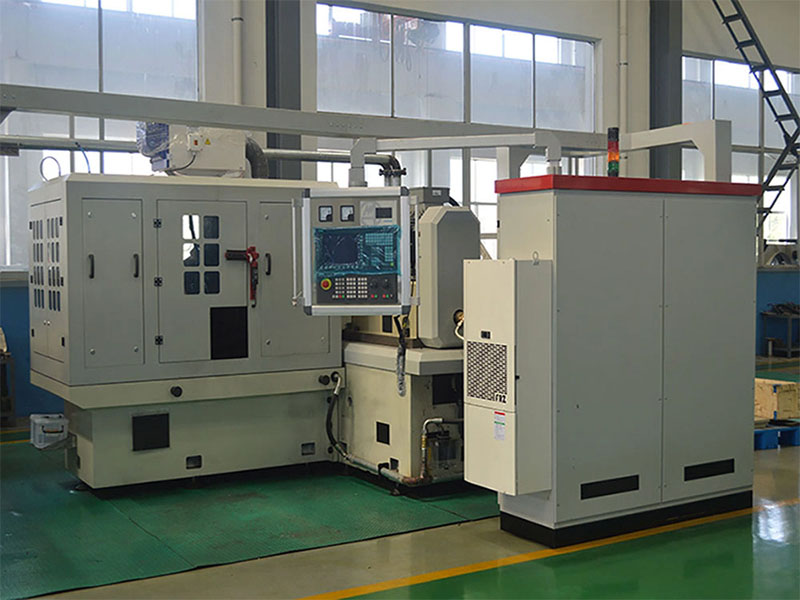

The company was established in 2007, with a business scope covering over 20 countries and regions. The enterprise covers an area of 26000 square meters and a building area of 12000 square meters. The main products include horizontal axis series double disc grinding machines such as LGM75C, LGM60Y, LGM50Y, SXM80D, SXM80Y, SX100-5W, SX150-9W, SX150-12Y, SX150D-13Y, M7675B, M7660B, M7650B, MY7650B and vertical axis series double disc grinding machines such as SXM750 and SXM580.
2007/Year
Of establishment
26000/Square meters
Enterprise occupying area
20/Countries
For business area
12000/Square meters
Buildings occupying area
Rushan Shuangxing Machine Tool Manufacturing Co., Ltd
The market share of our double disc grinding machines for connecting rods in China is already more than 80%, now we are interested in developing our market in foreign countries.

PROJECTS SHOW

The market share of our double disc grinding machines for connecting rods in China is already more than 80%, now we are interested in developing our market in foreign countries.
Our company has got a number of independent intellectual property rights for double disc grinding machines with special purpose for connecting rods and won many scientific and technological innovation awards in China
